We want to share a short video showing live transcription in action at CBC. This one is using our baseline Acoustic Model. No customizations were made, no hints used. This video gives an idea of what latency is achievable with real-time transcription.

‍

Automated real-time transcription is a great solution for accommodating hearing impaired if no sign-language interpreter is available. I can be used, e.g., at churches to transcribe sermons, at conventions and meetings to transcribe talks, at educational institutions (schools, universities) to live transcribe lessons and lectures, etc.

‍

Voicegain Platform provides a complete stack to support live transcription:

• Utility for audio capture at source
• Cloud based or On-Prem transcription engine and API
• Web portal for controlling multiple simultaneous live transcriptions
• Web-based viewer app to enable following the transcription on any device with web browser. This app can also be embedded into any web page.

Very high accuracy - above that provided by Google, Amazon, and Microsoft Cloud speech-to-text - can be achieved through Acoustic Model customization.

Voicegain adds grammar-based speech recognition to Twilio Programmable Voice platform via the Twilio Media Stream Feature.

The difference between Voicegain speech recognition and Twilio TwiML <Gather> is:

1. Voicegain supports grammars with semantic tags (GRXML or JSGF) while <Gather> is a large vocabulary recognizer that just returns text, and
2. Voicegain is  significantly cheaper (we will describe the price difference in an upcoming blog post).

When using Voicegain with Twilio, your application logic will need to handle callback requests from both Twilio and Voicegain.

Each recognition will involve two main steps described below:

Initiating Speech Recognition with Voicegain

This is done by invoking Voicegain async recognition API: /asr/recognize/async

Below is an example of the payload needed to start a new recognition session:

‍

‍

Some notes about the content of the request:

• startInputTimers tells ASR to delay start of timers - they will be started later when the question prompt finishes playing
• TWIML is set as the streaming protocol with the format set to PCMU (u-law) and sample rate of 8kHz
• asr settings include the three standard timeouts used in grammar based recognition - no-input, complete, and incomplete timeouts
• grammar is set to GRXML grammar loaded from an external URL

This request, if successful, will return the websocket url in the audio.stream.websocketUrl field. This value will be used in making a TwiML request.

Note, if the grammar is specified to recognize DTMF, the Voicegain recognizer will recognize DTMF signals included in the audio sent from Twilio Platform.

TwiML <Connect><Stream> request

After we have initiated a Voicegain ASR session, we can tell Twilio to open Media Streams connection to Voicegain. This is done by means of the following TwiML request:

‍

‍

Some notes about the content of the TwiML request:

• the websocket URL is the one returned from Voicegain /asr/recognize/async request
• more than one question prompt is supported - they will be played one after another
• three types of prompts are supported: 01) recording retrieved from a URL, 02) TTS prompt (several voices are available), 03) 'clip:' prompt generated   using Voicegain Prompt Manager which supports dynamic concatenation of prerecorded prompts
• bargeIn is enabled - prompt playback will stop as soon as caller starts speaking

Returned Recognition Response

Below is an example response from the recognition. This response is from built-in phone grammar.

‍

‍

Some of the feedback that we received regarding the previously published benchmark data, see here and here, was concerning the fact that the Jason Kincaid data set contained some audio that produced terrible WER across all recognizers and in practice no one would user automated speech recognition on such files. That is true. In our opinion, there are very few use cases where WER worse than 20%, i.e. where on average 1 in every 5 words is recognized incorrectly, is acceptable.

New Methodology

What we have done for this blog post is we have removed from the reported set those benchmark files for which none on the recognizers tested could deliver WER 20% or less. This criterion resulted in removal of 10 files - 9 from the Jason Kincaid set of 44 and 1 file from the rev.ai set of 20. The files removed fall into 3 categories:

• recordings of meetings - 4 files (this amounts to half of the meeting recordings in the original set),
• telephone conversations - 4 files (4 out of 11 phone phone conversations in the original set),
• multi-presenter, very animated podcasts - 2 files (there were a lot of other podcasts in the set that did meet the cut off).

The results

As you can see, Voicegain and Amazon recognizers are very evenly matched with average WER differing only by 0.02%, the same holds for Google Enhanced and Microsoft recognizer with the WER difference being only 0.04%. The WER of Google Standard is about twice of the other recognizers.

‍

[UPDATE - October 31st, 2021:  Current benchmark results from end October 2021 are available here. In the most recent benchmark Voicegain performs better than Google Enhanced. Our pricing is now 0.95 cents/minute]

[UPDATE: For results reported using slightly different methodology see our new blog post.]

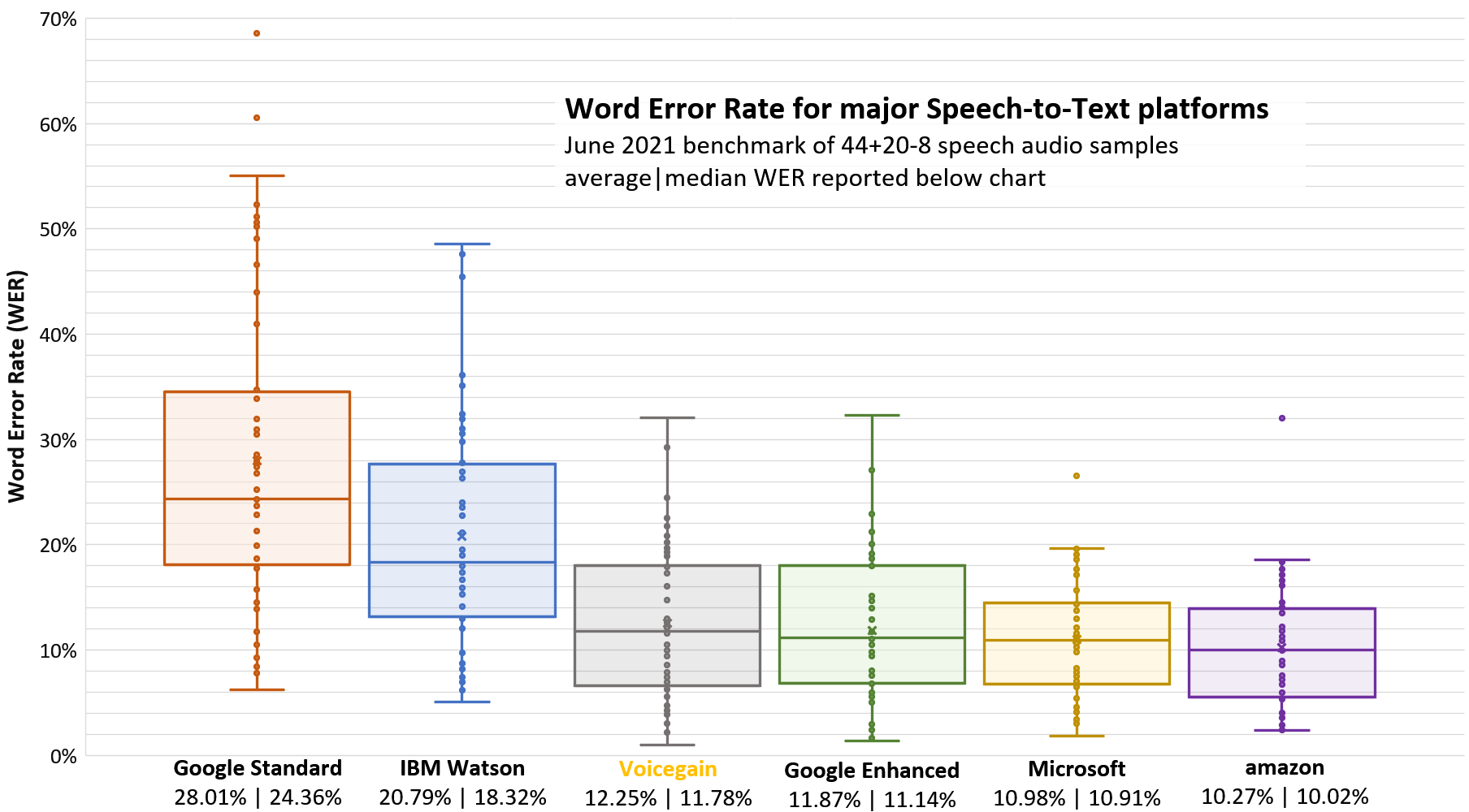

This is a continuation of the blog post from June where we reported the previous speech-to-text accuracy results. We encourage you to read it first, as it sets up a  context to better understand the significance of benchmarking for speech-to-text.

Apart for that background intro, the key differences from the previous post are:

• We have improved our recognizer and we are now essentially tied with Amazon
• We added another set of benchmark files - 20 files published by rev.ai. Please reference the data linked here when trying to reproduce this benchmark.

Here are the results.

Comparison to the June benchmark on 44 files.

‍

Less than 3 months have passed from the previous test, so it is not surprising to see no improvement on Google and Amazon recognizers.

Voicegain recognizer has how overtaken Amazon by a hair breadth in average accuracy, although Amazon median accuracy on this data set is slightly above Voicegain.

Microsrosoft recognizer has improved during this time period - on the 44 benchmark files it is now on average better than Google Enhanced (in the chart we retained ordering from the June test). The single bad outlier in Google Enhanced results does alone not account for the better average WER on the Microsoft on this data set.

Google Standard is still very bad and we will likely stop reporting on it in detail in our future comparisons.

Results from the benchmark on 20 new files.

The audio from the 20-file rev.ai test is not as challenging as some of the files in the 44-file benchmark set. Consequently the results are on average better but the ranking of the recognizers does not change.

As you can see in this chart, on this data set the Voicegain recognizer is marginally better than Amazon in.  It has lower WER on 13 out of 20 test files and it beats Amazon in the mean and median values. On this data set Google Enhanced beats Microsoft.

Combined results on 44+20 files

Finally, here are the combined results for all the 64 benchmark files we tested.

‍

On the combined benchmark Voicegain beats Amazon both in average and median WER, although the median advantage is not as big as on the 20 file rev.ai set. [Note that as of 2/10/21 Voicegain WER is now 16.46|14.26]

What we would like to point out is that when comparing Google Enhanced to Microsoft, one wins if we compare the average WER while the other has a better median WER value. This highlights that the results vary a lot depending on what specific audio file is being compared.

Conclusions

These results show that choosing the best recognizer for a given application should be done only after thorough testing. Performance of the recognizers varies a lot depending on the audio data and acoustic environment. Moreover, the prices vary significantly. We encourage you to  try the Voicegain Speech-to-Text engine for your application. It might be a better fit for your application. Even if the accuracy is a couple of points behind the two top players,  you might still want to consider Voicegain because:

• Our acoustic models can be customized to your specific speech audio and this can reduce the word error rates below the best out-of-the-box options - see our Improved Accuracy from Acoustic Model Training blog post.
• If the accuracy difference is small, Voicegain might still make sense given the lower price.
• We are continuously training our recognizer and it is only a matter of time before we catch up.

‍

Voicegain launched an extension to Voicegain /asr/recognize API that supports Twilio Media Streams via TwiML <Connect><Stream>. With this launch,  developers using Twilio's Programmable Voice get an accurate, affordable, and easy to use ASR to build Voice Bots /Speech-IVRs.

Update: Voicegain also announced that its large vocabulary transcription (/asr/transcribe API) integrates with Twilio Media Streams. Developers may use this to voice enable a chat bot developed on any bot platform or develop a real-time agent assist application.

Key Features of Twilio Media Streams support

Voicegain Twilio Media Streams support gives developers the following features:

1. Grammar Support for bots & IVRs: Developers can now write voice bots or ivrs that use grammars. Use of grammars can improve recognition accuracy and simplify bot development by constraining the speech-to-text engine. Also many traditional VoiceXML IVRs are built using grammars. Until now Twilio TwiML did not support use of speech grammars as the <Gather> command supports only text capture. This made it hard to build simple bots or migrate existing VoiceXML IVR applications to the Twilio platform. Mapping of text to semantic meaning had to be done separately, plus large vocabulary recognizer was more likely  to return spurious recognitions. Voicegain solves these problems by supporting both GRXML and JSGF speech grammars at the core speech-to-text (ASR) engine level. This delivers higher accuracy compared to an ASR that uses a large vocabulary language model to recognize text and then applies grammars to the recognized text.
2. 90% Savings on ASR Licensing costs: A big advantage for developers of the Twilio Programmable Voice platform has been its affordable pricing. However, that was not necessarily true for existing ASR options like <Gather> that is priced at  8 cents/minute (with a 15 second minimum). With Voicegain the ASR/STT price is 1.25 cents/ minute measured at 1 second increments.  If you include the billing increment, developers get 90% cost savings.
3. Better Timeout Support: Voicegain supports configurable timeouts for no-input, complete timeout and incomplete timeout. Because the grammar is integrated with the recognizer, Voicegain ASR is able to deliver accurate complete timeout response which is not possible with <Gather> command for which the only way to tell if the caller stopped speaking is a large enough pause.
4. Simplify dynamic prompt playback. -- In order to make use of <Connect><Stream> as easy as possible, we support passing prompts when invoking <Stream>. Prompts can be provided either as text or as URLs. If provided as text then Voicegain will either use TTS or perform dynamic concatenation of prerecorded prompts.  A prompt manager for such prerecorded prompts is provided as part of Voicegain Web Portal. Configurable barge-in is supported for the prompts.
5. Fine-tune and test grammars. -- Voicegain Web Portal includes a tool for reviewing and fine tuning grammars. The tool also supports regression tests. With this functionality you will never have to deploy grammars without knowing how well they are going to perform after changes.

How Twilio Media Streams works with Voicegain

‍

‍

TwiML <Stream> requires a websocket url. This url can be obtained by invoking Voicegain /asr/recognize/async API. When invoking this API the grammar to be used in the recognition has to be provided. The websocket URL will be returned in the response.

‍

In addition to the wss url, Custom Parameters within <Connect><Stream> command are used to pass information about the question prompt to be played  to the caller by Voicegain. This can be a text or a url to a service that will provide the audio.

Once <Connect><Stream> has been invoked, Voicegain platform takes over-  it:

• Plays the prompt via the back channel of <Stream>
• As soon as caller starts speaking, the prompt playback is stopped (if it it was still playing) exactly like in <Gather>
• Spoken words are are recognized using grammar. Recognition result is then provided as a callback from Voicegain Platform. In case of no-input or no-match an appropriate callback will also be made.
• <Stream> connection is stopped and the TwiML application will continue with a next command.

BTW, we also support DTMF input as an alternative to speech input.

[UPDATE: you can see more details of how to use Voicegain with Twilio Media Streams in this new Blog post.]

Other features of the Voicegain Platform

1. On Premise Edge Support: While Voicegain APIs are available as a cloud PaaS service, Voicegain also supports OnPrem/Edge deployment. Voicegain can be deployed as a containerized service on a single node Kubernetes cluster, or onto multi-node high-availability Kubernetes cluster (on your GPU hardware or your VPC).

2. Acoustic model customization: This allows to achieve very high accuracy beyond what is possible with out of the box recognizers. The grammar tuning and regression tool mentioned earlier, can be used to collect training data for acoustic model customization.

More Features Coming

On our near-term roadmap for Twilio users we have several more features:

• Advanced Answering Machine Detection (AMD) -- will be invoked using <Connect><Stream> and will provide very accurate answering machine detection using speech recognition.
• Large vocabulary language model to just capture the spoken words (no grammars are used) and integrate with any NLU Engine of your choice. We think it will be attractive because of the lower cost compared to <Gather>.
• Real-time agent assist - we are combining our real-time speech recognition with speech analytics to deliver an API that will allow for building real-time agent assist and monitoring applications.

You can sign up to try our platform. We are offering 600 minutes of free monthly use of the platform. If you have questions about integration with Twilio, send us a note at support@voicegain.ai.

Twilio, TwiML and Twilio Programmable Voice are registered trademarks of Twilio, Inc

‍

Businesses of all sizes are looking to develop Voicebots to automate customer service calls or voice based sales interactions. These bots may be voice versions of existing Chatbots, or exclusively voice based bots. While Chatbots automate routine transactions over the web, many users like the ability to use voice (app or phone) when it is convenient.

A voice bot dialog consists of multiple interactions where a single interaction typically involves 3 steps:

1. A caller/customer's spoken utterance is converted into text
2. Intent is extracted from the transcribed text
3. Next step of the conversation is determined based on the intent extracted and the current state/context of the conversation.

For the first step, developers use a Speech-to-Text platform to transcribe the spoken utterance into text. ASR or Automatic Speech Recognition is another term that is used to describe the same type of software.

When it comes to extracting intent from the customer utterance, they typically use an NLU engine. This is understandable because developers would like to re-use the dialog flow or conversation turns programmed in their Chatbot App for their Voicebot.

A second option is to use Speech Grammars which match the spoken utterance and assign meaning (intent) to it. This option is not in vogue these days but Speech Grammars have been successfully used in telephony IVR systems that supported speech interaction using ASR.

This article explores both approaches to building Voicebots.

The NLU approach

Most developers today use the NLU approach as a default option for Steps 2 and 3. Popular NLU engines include  Google Dialog Flow, Microsoft LUIS, Amazon Lex and also increasingly an open source framework like RASA.

An NLU Engine helps developers configure different intents that match training phrases, specify input and output contexts that are associated with these intents, and define actions that drive the conversation turns. This method of development is very powerful and expressive. It allows you to build bots that are truly conversational. If you use NLU to build a Chatbot  you can generally reuse its application logic for a Voicebot.

But it has a significant drawback. You need to hire highly skilled natural language developers. Designing new intents, handling input and output contexts, entities etc is not easy. Since you require skilled developers, the development of bots using NLU is expensive. It is not just expensive to build but it is costly to maintain too. For example, if you want to add new skills to the bot that are beyond its initial set of  capabilities, modifying the contexts is not an easy process.

Net-net the NLU approach is a really good fit if (a) you want to develop a sophisticated bot that can support a truly conversational experience (b) you are able to hire and engage skilled NLP developers and (c) you have adequate budgets to develop such bots.

The Speech Grammar approach

One approach that was used in the past and seems to have been forgotten these days is the use of Speech Grammars. Grammars were used extensively to build traditional telephony based speech IVRs for over 20 years now, but most NLP and web developers are not aware of them.

A Speech Grammar provides either a list of all utterances that  can be recognized, or, more commonly, a set of rules that can generate the utterances that can be recognized. Such grammar combines two functions:

1. it provides a language model that guides the speech-to-text engine in evaluating the hypotheses, and
2. it can attach semantic meaning to the recognized text utterances.

The second function is achieved by attaching tags to the rules in the grammars. Tag formats exist that support complex expressions to be evaluated for grammars that have many nested rules. These tags allow the developer to essentially code intent extraction right into the grammar.

Also Step 3 - which is the dialog/conversation flow management - can be implemented in any backend programming language - Java, Python or Node.js. Developers of voice bots that are on a budget and are looking to building a simple bot with just a few intents should strongly consider grammars as an alternative approach to NLU.

NLU and Speech Grammar compared

Advantages of NLU

• NLU can be applied to text that has been written as well as text coming from speech-to-text engine. This allows in principle for the same application logic to be used for both a Chatbot and a Voicebot. Speech Grammars are not good at ignoring input text that does not match the grammar rules. This makes Speech Grammars not directly applicable to Chatbots, though ways have been devised to allow Speech Grammar to do "fuzzy matching".
• A well trained NLU can capture correct intents in more complex situations than a Speech Grammar. Note, however, that some of the NLU techniques could be used to automatically generate grammars with tags that could be a close match for NLU performance.

Advantages of Grammars

• NLU intent recognition may suffer if the speech-to-text conversion was not 100% correct. We have seen reports of combined Speech-to-Text+NLU accuracy being very low (down to just 70%) in some use cases. Speech Grammars, on the other hand, are used as a language model while evaluating speech hypotheses.  This allows the recognizer to still deliver correct intents even when the spoken phrase does not match the grammar exactly - the recognition result will have lower confidence but will still be usable.
• Speech grammars are simple to build and use. Also, there is no need to integrate NLU system with Speech-to-Text system. All the work can be performed by the Speech-to-Text engine


Our Recommendation

Voicegain is one of the few Speech-to-Text or ASR engines that supports both approaches.

Developers can easily integrate Voicegain's large vocabulary speech-to-text (Transcribe API) with any popular NLU engine. One advantage that we have here is the ability to output multiple hypotheses - when using the word-tree output mode. This allows multiple NLU intent matches to be done of the different speech hypotheses  with the goal of determining if the there is an NLU consensus in spite of differing speech-to-text output. This approach can deliver higher accuracy.

We also provide our Recognize API and RTC Callback APIs ; both of these support speech grammars. Developers may code the application flow/dialog of the voicebot in any backend programming language - Java, Python, Node.Js. We have extensive support for telephony protocols like SIP/RTP and we support WebRTC.

Most other STT engines - including Microsoft, Amazon and Google - do not support grammars. This may have something to do with the fact that they are also trying to promote their NLU engines for chatbot applications.

If you are building a Voicebot and you'd like to have a discussion on which approach suits you, do not hesitate to get in touch with us. You can email us at info@voicegain.ai.

‍
